Titanium Slip-On Flange (SO)
Grade 2 / Grade 5 Titanium slip-on flanges compliant with EN 1092-1, ASME B16.5, JIS, and DIN standards for fluid processing.
Titanium Blind Flange (BL)
Solid forged titanium blind flanges engineered for high-pressure line isolation, vessel nozzles, and pipeline termination.

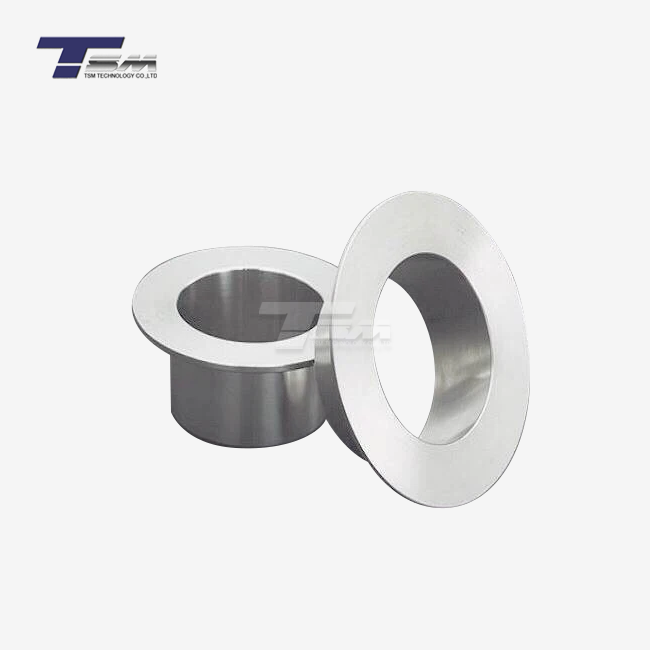

Titanium Stub End & Lap Joint
ASME B16.5 & ASTM B363 titanium stub ends designed for lap joint piping assemblies, reducing overall system material costs.

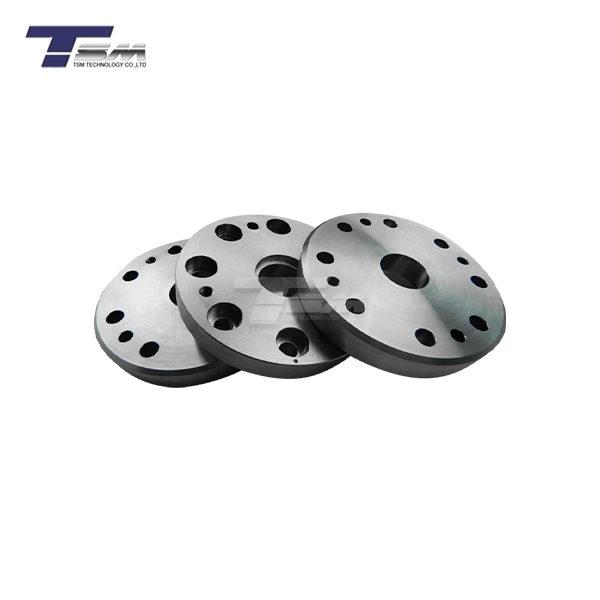

GR7 Titanium Flange (Ti-Pd Alloy)
Palladium-enhanced Grade 7 titanium flanges offering maximum corrosion resistance against reducing acids and crevice attack.

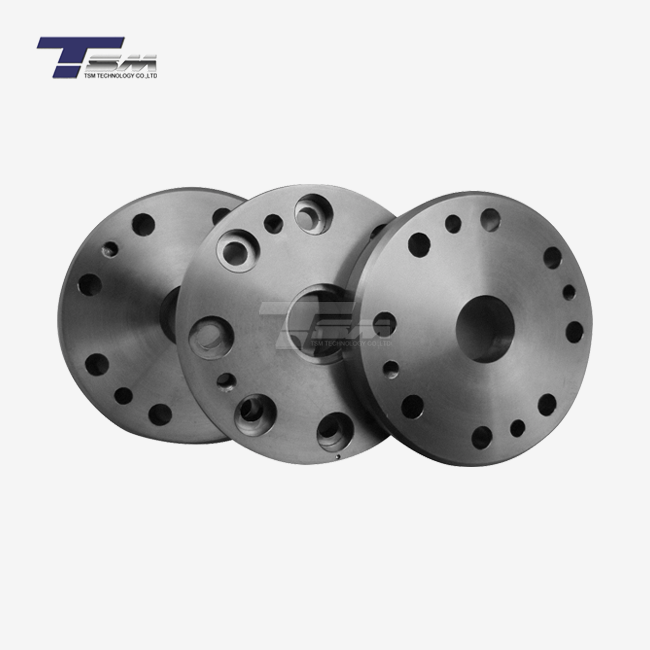

Titanium Plate Welding Flange (PL)
Flat plate welding flanges precision-cut and turned from premium ASTM B265 titanium plate for low-pressure chemical piping.

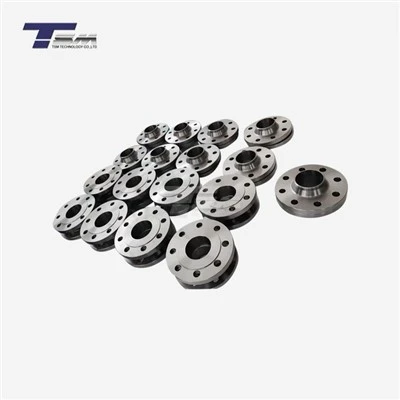

Custom / Large Diameter Flanges
Tailored OEM titanium flanges up to DN1200 / 48" manufactured strictly according to technical drawings and engineering specs.

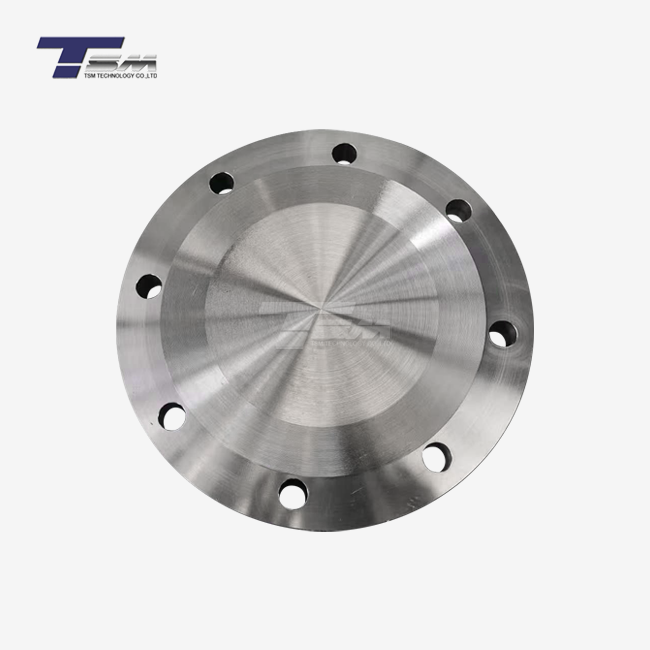

Forged Titanium Blind Flange (UNS R50400)
Heavy-duty forged Gr2 blind flanges meeting PN40 pressure ratings for aggressive chemical processing and offshore platforms.

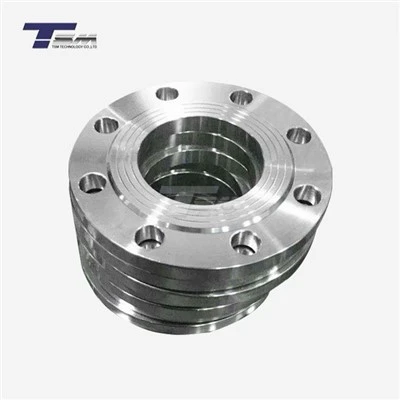

EN 1092-1 Type 01 Plate Flange
European standard Type 01 flat flanges manufactured for chemical plant engineering, water desalination, and power units.

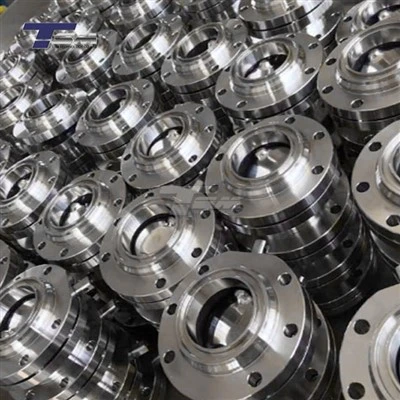

ANSI B16.5 Weld Neck Flange (WN)
Tapered hub weld neck flanges providing superior stress distribution under severe pressure, thermal shock, and cyclic conditions.
High-Performance Titanium Flanges Manufacturer & Supplier
Almerca Titanium Industry Co., Ltd. is a vertically integrated global supplier and manufacturer of premium forged and CNC-machined titanium flanges. We manufacture titanium flanges designed to connect industrial piping, valves, heat exchangers, pressure vessels, and pumps operating in severe, corrosive, and high-stress environments.
Our titanium flanges combine lightweight characteristics (density of 4.51 g/cm³), exceptional strength-to-weight ratio, and unexcelled resistance to chloride pitting, seawater corrosion, nitric acid, and organic compounds. Every batch is manufactured under ISO 9001 quality management systems and supplied with comprehensive material traceability certificates.
E-E-A-T Certified Manufacturing: All titanium flanges produced by Almerca Titanium Industry Co., Ltd. are 100% inspected using Ultrasonic NDT, Positive Material Identification (PMI), dimensional verification, and hydro-testing to guarantee zero-defect performance in mission-critical applications.
Titanium Flange Material Grades
We supply commercially pure (CP) titanium and alloyed titanium flanges tailored to specific temperature, mechanical, and chemical exposure requirements:
| Titanium Grade | UNS Standard | Key Performance Characteristics & Applications |
|---|---|---|
| Grade 1 (CP Ti) | UNS R50250 | Highest ductility and formability, superior resistance to oxidising environments and seawater. |
| Grade 2 (CP Ti) | UNS R50400 | Workhorse industrial grade providing optimum balance of tensile strength, ductility, and weldability. |
| Grade 5 (Ti-6Al-4V) | UNS R56400 | Alpha-beta aerospace alloy delivering high yield strength (min. 828 MPa) for high-pressure systems. |
| Grade 7 (Ti-0.15Pd) | UNS R52400 | Palladium-microalloyed titanium engineered for extreme resistance to reducing acids and crevice corrosion. |
| Grade 9 (Ti-3Al-2.5V) | UNS R56320 | Medium-strength structural alloy offering superior pressure ratings and elevated temperature capability. |
| Grade 12 (Ti-0.3Mo-0.8Ni) | UNS R53400 | Enhanced crevice-corrosion resistance in high-temperature brine and acidic chloride solutions. |
International Manufacturing Standards & Dimensions
Our production facilities accommodate standard dimensional specs and custom engineered geometries:
| Parameter | Standard Specification & Range |
|---|---|
| Standard Compliance | ASTM B381, ASME B16.5, ASME B16.47, EN 1092-1, DIN 2501, JIS B2220, MSS-SP-44 |
| Nominal Pipe Size (NPS) | NPS 1/2" to 48" (DN15 to DN1200); custom diameters up to 2000 mm |
| Pressure Class Rating | Class 150, 300, 600, 900, 1500, 2500 / PN6, PN10, PN16, PN25, PN40, PN63, PN100 |
| Facing Configurations | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Male & Female (M&F), Tongue & Groove (T&G) |
| Testing & Documentation | EN 10204 3.1 MTC, PMI Analysis, UT Testing (ASTM A388), Dimensional & Surface Roughness Reports |
Comprehensive Range of Titanium Flange Types
Almerca Titanium Industry Co., Ltd. manufactures all primary industrial flange configurations for specialized piping projects:
- Weld Neck Flanges (WN): Designed with a tapered hub to minimize stress concentrations; ideal for cyclic loading, extreme pressures, and elevated temperatures.
- Slip-On Flanges (SO): Fitted over pipe ends and welded internally and externally; easy to align and economical for medium-pressure piping.
- Blind Flanges (BL): Solid disk forgings used to seal piping ends, pressure vessel nozzles, and inspection ports.
- Socket Weld Flanges (SW): Feature an internal recess for insertion of small-diameter pipes; suitable for high-pressure, small-bore piping lines.
- Threaded Flanges (TH): Bored with internal NPT/BSP threads to connect pipes without thermal welding; essential in explosive environments.
- Lap Joint Flanges & Stub Ends: Used in conjunction with titanium stub ends to allow fast alignment of bolt holes; significantly reduces overall alloy material costs.
Industrial Applications
Our ASTM/ASME certified titanium flanges are deployed globally across high-demanding sectors:
- Chemical & Petrochemical Processing: Reactor piping, chlor-alkali systems, organic acid production, and heat exchanger header connections.
- Desalination & Seawater Management: Reverse osmosis (RO) plants, seawater intake pipelines, and evaporative cooling units.
- Marine & Subsea Offshore: Subsea manifolds, riser systems, hull piping, and offshore oil platform topsides exposed to harsh marine atmospheres.
- Power Generation & Environmental Protection: Flue gas desulfurization (FGD) scrubbers, geothermal steam lines, and nuclear cooling systems.
Rigorous Quality Control & Material Traceability
Every titanium flange produced by Almerca Titanium Industry Co., Ltd. undergoes strict multi-stage quality checks. From vacuum arc remelting (VAR) titanium ingots to precision CNC machining, we maintain complete control over raw material composition, grain structure integrity, dimensional tolerance, and sealing surface finish (Ra 3.2 - 6.3 µm).
Customers receive 100% verified documentation including EN 10204 3.1 Material Test Certificates, chemical analysis, mechanical tension test results, hardness testing, ultrasonic NDT inspection reports, and third-party inspection (TÜV, SGS, BV) upon request.
Frequently Asked Questions (FAQ)
Q: What is a titanium flange used for?
A: A titanium flange creates a detachable, leak-proof joint connecting pipes, valves, pumps, pressure vessels, heat exchangers, and processing equipment. Titanium flanges offer outstanding corrosion resistance in chlorinated and marine environments.
Q: What are the most common titanium flange grades?
A: Commercially pure titanium Grade 2 is the most widely specified for industrial chemical systems due to its optimal balance of strength and corrosion resistance. Grade 5 (Ti-6Al-4V) is preferred for high-strength aerospace applications, while Grade 7 provides superior performance in severe reducing acids.
Q: What standards govern Almerca Titanium flange manufacturing?
A: Our titanium flanges are manufactured in full compliance with ASTM B381, ASME B16.5, EN 1092-1, DIN, JIS B2220, and MSS-SP-44 standards. Custom drawings and project specifications are fully supported.
Q: Can Almerca Titanium manufacture custom titanium flanges?
A: Yes, Almerca Titanium Industry Co., Ltd. specializes in custom CNC machined titanium flanges, OEM geometries, non-standard diameters (up to DN1200 / 48 inches), custom bolt-hole patterns, and specific facing configurations.
Q: Are Material Test Certificates (MTC) provided with orders?
A: Yes, all orders ship with comprehensive EN 10204 3.1 Material Test Certificates detailing chemical composition, mechanical properties, PMI analysis, NDT inspection results, and full heat number traceability.
